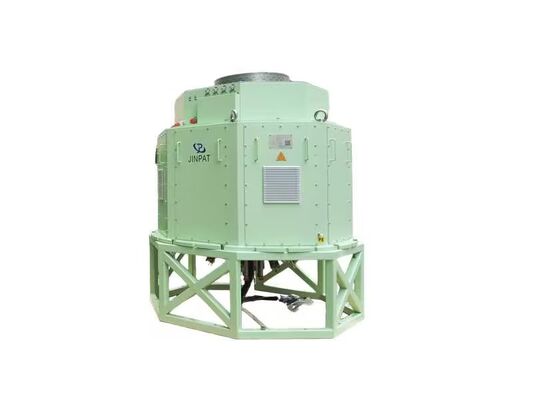

Modular Rotary System Slip Ring with Hydraulic Pneumatic Transmission, High Voltage Power (3300V, 720A), and Fiber Optic Rotary Joints

  • Modular Rotary System Slip Ring with Hydraulic Pneumatic Transmission, High Voltage Power (3300V, 720A), and Fiber Optic Rotary Joints
Detalhes do produto
Canais hidráulicos 8-canal pressão hidráulica máxima MPa 5
Canais pneumáticos 2-channel Energia de alta tensão 3300V, 720A
Canais de fibra óptica Multimodo de 6 canais Indicação do ângulo do leme ±180° bidirecional
Descrição de produto

This integrated multi-function slip ring system combines hydraulic, pneumatic, high-voltage power, signal, and fiber optic transmission in a single compact rotary interface, delivering exceptional performance for complex industrial applications.

It features:

  • 8-channel hydraulic rotary system (max pressure 5 MPa) and 2-channel pneumatic transmission
  • 6 high-voltage power lines (3300V, up to 720A), low-voltage auxiliary power, industrial Ethernet, and 6-channel multi-mode fiber optic rotary joints
  • Built-in environmental and monitoring modules including heater, dehumidification and cooling fan system, infrared temperature sensor, potentiometer, and rudder angle indicator
  • Modular structure with aviation connectors, terminal copper busbars, and junction box options for fast installation and maintenance
  • High-precision potentiometer with ±180° bidirectional rudder angle indication

Designed for high-reliability systems, it significantly improves integration level, reduces system complexity, and ensures stable operation under demanding working conditions.
