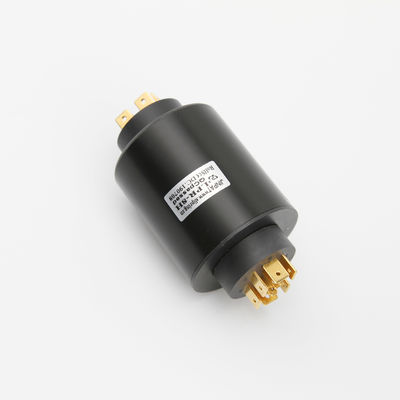

360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Número do circuito | 8 | Classificação atual | 2ckt*5A, 6ckt*20A |
|---|---|---|---|
| Tensão | 240 VAC | Velocidade de trabalho | 0~300 rpm |
| Temperatura de trabalho | -20~+60℃ | Força dielétrica | 500V a 50Hz entre circuitos |
| Isolamento | 100MΩ@500VDC | Ruído elétrico | ≤15mΩ |
| Material de contato | Metal precioso | Material de moradia | Engenharia de plástico |
| Tipo de fio | Pino chapeado de prata | Grau de proteção | IP54 |
| Ângulo de rotação | 360 graus | Tipo de conexão | anel deslizante do pino |
| Força de fricção | Baixo | ||
| Destacar | 360 Degree Rotation Slip Ring,8 Circuit Rotary Joint,240VAC Swivel Joint |
||
Descrição de produto
360 Degree Rotation Swivel Joint 8 Circuit 240VAC 5A/20A 0~300 RPM Industrial Machinery Cable Reel Slip Ring
Bargain Price Only in Alibaba
Rotary Joint Slip Ring Description
The LPR series is a group of Pin Slip Rings designed and manufactured by JINPAT Electronics. This unit features an exquisite design that replaces wires with pins for connections, complying with RoHS standards. Its convenient installation makes it ideal for systems requiring power transmission in compact spaces with plug-and-play functionality.
The LPR-8H pin connection slip ring is suitable for any electromechanical system needing continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit uses gold contacts at the rotary interface and color-coded lead wires on both stator and rotor for simplified electrical connections.
Rotary Joint Slip Ring Features
- Mercury-free unit with environmentally friendly design
- 360° rotating transmission capability
- Large current-carrying capacity
- No interference or data package loss
- Extremely low electrical noise and friction force
- Quick connection with spade terminal
Rotary Joint Slip Ring Advantages
- Optional circuit number configurations
- Long service life
- Maintenance free operation
Specifications
| Circuits | 8 |
|---|---|
| Current Rating | 2ckt*5A, 6ckt*20A |
| Voltage | 240 VAC |
| Dielectric Strength | 500V@50Hz between circuits |
| Insulation | 100MΩ@500VDC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Housing | Engineering plastic |
| Wire Size | Silver plated pin |
| Working Temperature | -20~+60℃ |
| Protection Grade | IP54 |
Rotary Joint Slip Ring Main Applications
- Electric devices
- CT machines
- Mini robots
- LED industry
- Mini-type devices
Outline Drawing
Product Display
Company Introduction
JINPAT Electronics, founded in 1996, is a leading manufacturer of slip rings committed to developing industrial slip rings for various applications. Our product range includes Capsule Slip Rings, Through-bore Slip Rings, Large-current Slip Rings, Coax Rotary Joints, Fiber Optic Slip Rings, Separate Slip Rings, and Pin Slip Rings as standard off-the-shelf units. We also support custom designs for specialized applications including Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, and RS422 interfaces. All products meet our quality management system certified by IS09001:2008/ISO14001:2015.
