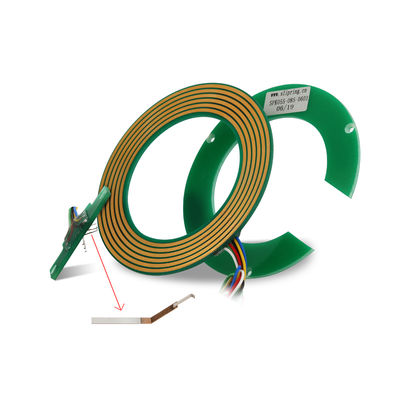

High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating

  • High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating
Lugar de origem China
Marca JINPAT
Certificação ISO/CE/RoHS/UL
Número do modelo LPKS025-085-0205-08S
Quantidade de ordem mínima 10 unidades
Preço negotiable

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Circuitos 2 circuitos Classificação atual 5A pelo circuito
Classificação de tensão 220VDC/AC Material de contato Metal precioso
Diâmetro interno Φ25 mm Velocidade de trabalho 0 ~ 300rpm
Força dielétrica ≥300VDC@50Hz(Corrente), ≥100VDC@50Hz(sinal) Resistência ao isolamento 100MΩ@300VDC (corrente), 100MΩ@100VDC (sinal)
Material de moradia FR-4 Comprimento do fio Fio do estator: 300 mm, fio do rotor: 300 mm
Temperatura operacional -20 ° C ~+60 ° C. Método de instalação Fixado com parafusos M2
Velocidade de rotação Alto Grossura 6mm
Transmissão de sinal rotação 360°
Destacar

5A Current Rating Pancake Slip Ring

,

25mm Hole Size Flat Slip Ring

,

220VDC/AC Voltage Rating LPK Series Slip Ring
Descrição de produto
High-Speed 5A Flat Slip Ring with 2 Circuits 25mm Hole Size
Compact Pancake Slip Ring for Current and Signal Transmission
Bargain Price Only in Alibaba
The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, specifically engineered for rotation systems with limited vertical installation space. The innovative copper ring and brush contact configuration around a central hole maximizes space efficiency.
Key Features
  • High rotating speed capability
  • Reliable contact with lightweight design
  • Exceptionally low physical noise operation
  • Continuous 360° power and signal transmission
  • Stable connection without interference or drops
Product Advantages
  • Pre-installed photoelectric encoder
  • Choice of solid or hollow shaft options
  • Fast delivery service
  • Custom engineering solutions available
Technical Specifications
Electronic & Electrical Mechanical
Circuits: 2 circuits × 5A + 8 signal circuits Working Speed: 0-300rpm
Inner Diameter: Φ25mm Contact Material: Nobel Metal
Working Voltage: 220VDC/AC Housing Material: FR-4
Dielectric Strength: ≥300VDC@50Hz (Current) ≥100VDC@50Hz (Signal) Wire Length: Stator/Rotor 300mm each
Insulation: 100MΩ@300VDC (Current) 100MΩ@100VDC (Signal)
Environment Remarks
Temperature Range: -20°C to +60°C Installation: Fixed with M2 screws on customer's flange
High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 0
Primary Applications
  • Packaging/wrapping machinery
  • Semiconductor handling systems
  • Industrial machinery
  • Exhibit display machinery
  • Medical equipment
  • Rotary index tables
  • Process control equipment
High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 1 High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 2 High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 3 High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 4
