30 Circuit 300 RPM Capsule Slip Ring 240VAC 1A for Medical Equipment

  • 30 Circuit 300 RPM Capsule Slip Ring 240VAC 1A for Medical Equipment
  • 30 Circuit 300 RPM Capsule Slip Ring 240VAC 1A for Medical Equipment
Lugar de origem Guangdong, China
Marca JINPAT
Número do modelo LPM-30A
Quantidade de ordem mínima 1
Preço $80

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Número do circuito 30 Classificação atual 1a
Tensão 240VAC Velocidade de trabalho 0~300 rpm
Temperatura de trabalho -20~+60℃ Ruído elétrico ≤15mΩ
Material de contato Metal precioso Tamanho do fio 30# Silver Plated Copper Ul, Teflon
Comprimento do fio de chumbo Rotor: 250mm; Estator: 250mm Umidade ≤60%RH
Grau de proteção IP54 Estilo Anel deslizante da cápsula
Tipo acessórios eletrônicos Interface de contato Contatos do ouro
Cor do fio Cor-codificado
Destacar

30 circuit capsule slip ring

,

300 RPM medical slip ring

,

240VAC 1A capsule slip ring
Descrição de produto
Miniature 300 RPM Slip Ring with 30 Circuits Electrical Contacts
Premium Quality for Medical Equipment and Industrial Applications
Special Offer Available Exclusively on Alibaba
LPM-30A Slip Ring Description
The LPM-30A miniature slip ring with 30 circuits is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard, off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires on both stator and rotor for simplified electrical connections.
LPM-30A Slip Ring Specifications
Parameter Value
Circuits 30
Current Rating 1A
Voltage 240VAC
Electrical Noise ≤15mΩ
Working Speed 0~300 RPM
Contact Material Precious metal
Wire Size 30# silver plated copper UL, Teflon
Lead Wire Length Rotor:250mm; Stator:250mm
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP54
Primary Applications
  • Electric devices and control systems
  • Medical facilities and equipment
  • Industrial machinery and automation
  • LED display and lighting systems
  • Process control equipment
Product Visuals

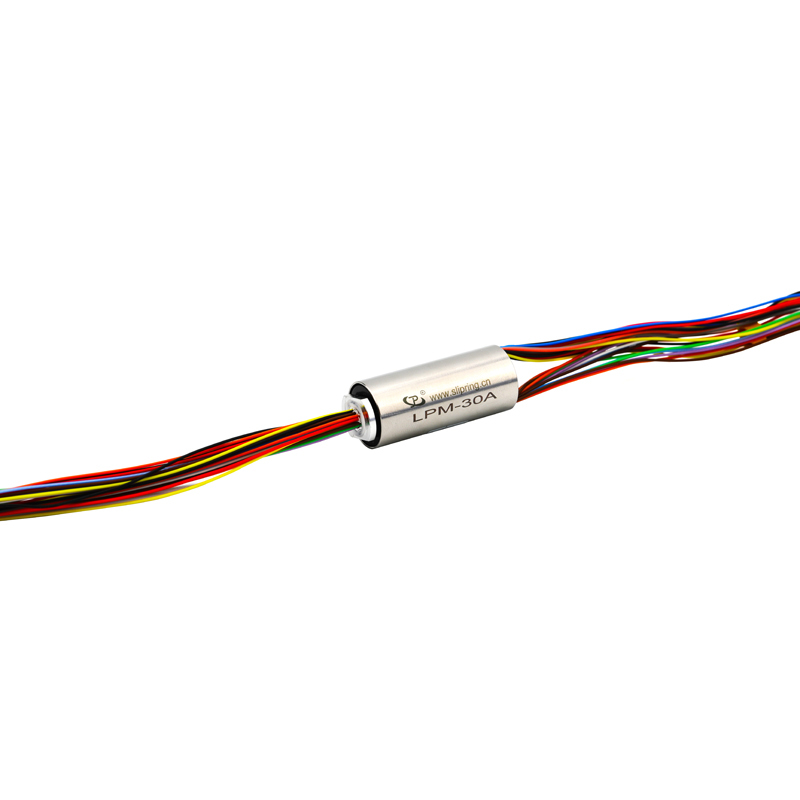

30 Circuit 300 RPM Capsule Slip Ring 240VAC 1A for Medical Equipment 0

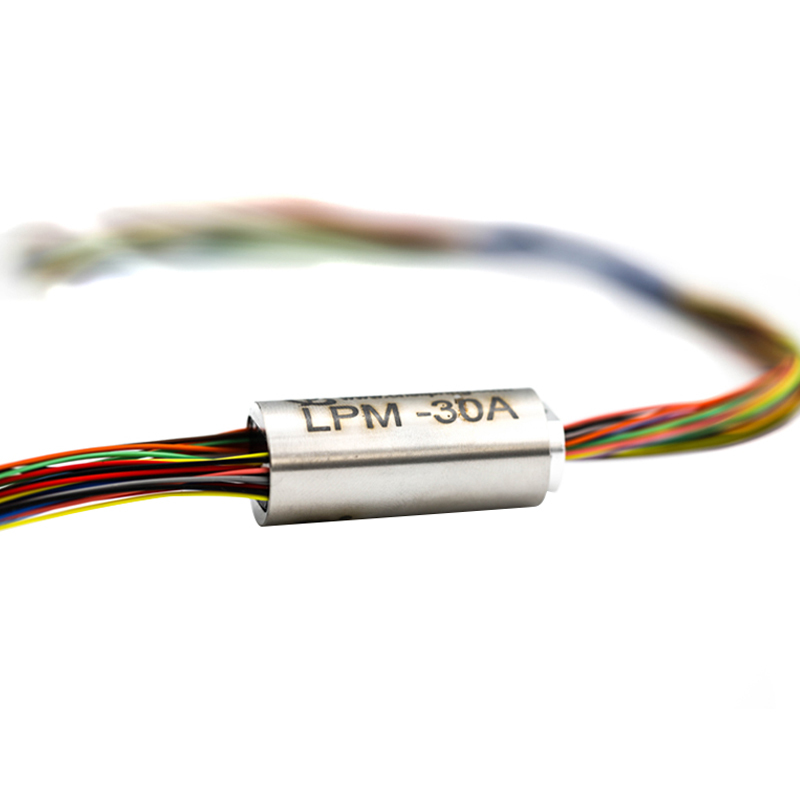

30 Circuit 300 RPM Capsule Slip Ring 240VAC 1A for Medical Equipment 1
Manufacturer Advantages
  • 12,000 square meter production facility with 500+ employees
  • Recognized as National High and New Technology enterprise with 69 patents
  • Global partnerships with renowned enterprises and worldwide agents
  • 10,000+ successful designs for civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Custom slip ring solutions tailored to specific equipment requirements
  • Efficient production and fast delivery capabilities
30 Circuit 300 RPM Capsule Slip Ring 240VAC 1A for Medical Equipment 2
Frequently Asked Questions

What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.

What is a slip ring?
An electromechanical device enabling power and signal transmission between stationary and rotating structures, eliminating damage-prone dangling wires while improving mechanical performance.

Product offerings:

  • Electrical Slip Rings (capsule, through-bore, miniature)
  • Signal Slip Rings (USB, fiber optic, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Ring Solutions
  • Large volume production capabilities

How to select a slip ring?
Consider your application's operating parameters including circuit count, voltage/amperage requirements, operating speed, and mounting configuration. Our engineers can assist with selection.

Custom solutions available?
Yes, our engineering team develops tailored solutions to meet specific application requirements. Contact us to discuss your needs.
