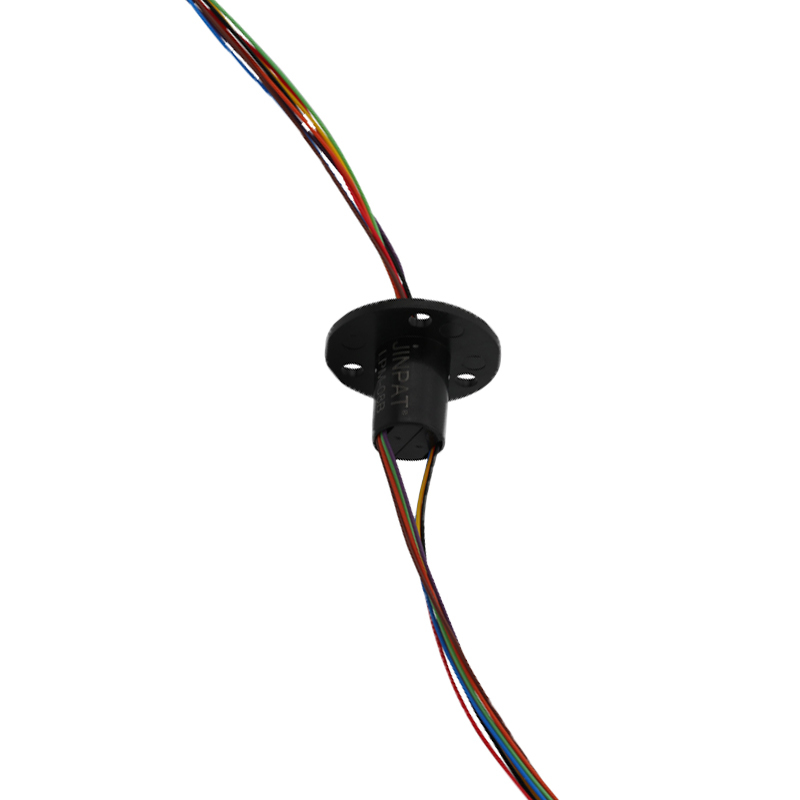

Miniature 8 Circuit Slip Ring Gold Contact 0-300rpm IP40

  • Miniature 8 Circuit Slip Ring Gold Contact 0-300rpm IP40
Lugar de origem Guangdong, China
Marca JINPAT
Número do modelo LPM-08B-0404 (JP37-019-01HW)
Quantidade de ordem mínima 1
Preço US$25

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Velocidade rotativa 0 ~ 300rpm Material de contato Ouro ao ouro
Grau de proteção IP40 CIRCUITOS TOTAL 8 circuitos
Capacidade atual 4 circuitos*4a Tensão de classificação 110VAC/DC
Força dielétrica 200VAC@50Hz (P) Resistência ao isolamento 50mΩ@200VDC (P)
Fluctuação da resistência dinâmica 35mΩ Tamanho do fio de chumbo AWG28 # Silver Plated Copper Ul, Teflon
Temperatura operacional -20 ° C ~+60 ° C. Umidade ≤60%RH
Material de moradia Plásticos de engenharia Comprimento do fio do estator 200 mm
Comprimento do fio do rotor 55 mm
Destacar

Miniature slip ring gold contact

,

8 circuit slip ring 0-300rpm

,

Rotary slip ring IP40
Descrição de produto
Miniature Capsule Slip Ring 8 Circuits 0~300rpm Low Resistance
Ideal for Smart Robots and Compact Applications
Product Specifications
Attribute Value
Type Electronic Accessories
Rotating Speed 0~300rpm
Contact Material Gold To Gold
Life span Customizable
Protection grade IP40
Product Description
Premium Quality at Competitive Pricing
Our miniature slip rings provide the perfect solution for power and signal transmission in devices with limited installation space. The JINPAT LPM-08B-0404 model features a durable metal housing with gold-to-gold contacts for stable performance, and a toughened material design for enhanced aesthetics. With a slender profile similar to a pencil, this compact unit contains 8 total circuits (4 circuits rated for 4A current transmission).
Key Features and Advantages
  • Military-grade materials and manufacturing processes
  • Stable performance for accurate signal transmission
  • Long lifespan with high protection (maintenance-free operation)
  • Compact, lightweight design with streamlined structure
  • Easy installation and smooth operation
  • Low torque with minimal electrical noise and resistance
Technical Specifications
Electrical & Electronics
Circuits Total: 8 circuits (4 circuits × 4A)
Rating Voltage 110VAC/DC
Dielectric Strength 200VAC@50Hz(P)
Insulation Resistance 50MΩ@200VDC (P)
Dynamic Resistance Fluctuation Value 35MΩ
Lead Wire Size AWG28 # silver plated copper UL, Teflon
Mechanical
Rotating Speed 0~300rpm
Contact Material Gold To Gold
Housing Material Engineering Plastics
Wire Length Stator: 200mm
Rotor: 55mm
Environmental & Others
Temperature -20°C~+60°C
Humidity ≤60%RH
Protection grade IP40
Life span Customizable
Note "P" stands for power, "S" stands for signal
Product Outline
Miniature 8 Circuit Slip Ring Gold Contact 0-300rpm IP40 0
Company Advantages
JINPAT Electronics provides free custom slip ring solutions to propel your technology forward:
  • 12,000+ square meter facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise with 69 patents
  • Global partnerships with renowned enterprises and worldwide agents
  • 10,000+ successful designs across civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Custom solutions for diverse equipment requirements
  • Fast delivery times
Miniature 8 Circuit Slip Ring Gold Contact 0-300rpm IP40 1
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
An electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. Slip rings enhance mechanical performance, simplify system operation, and eliminate damage-prone dangling wires in movable joints.
What kinds of slip rings do we provide?
  • Electrical Slip Rings (capsule, through-bore, miniature)
  • Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage/amps per circuit, operating speed, and mounting type. For custom solutions or selection assistance, contact our engineering team.
Do you provide custom slip rings?
Yes, our engineers develop perfect solutions for unique requirements. Contact us to discuss your custom slip ring needs.
