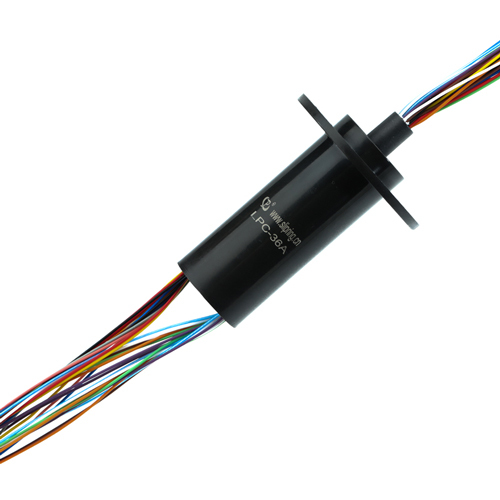

36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact

  • 36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact
Lugar de origem Guangdong, China
Marca JINPAT
Número do modelo LPC-36T
Quantidade de ordem mínima 1
Preço $155

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Velocidade de operação 0-200 RPM Número de circuitos 36
Tensão 240 VAC/DC Classificação atual 2 ampères pelo circuito
Faixa de temperatura -20 ℃ a +60 ℃ Material de contato Ouro ao ouro
Tamanho do chumbo cobre 28# chapeado de prata Comprimentos de chumbo 250 mm (9,843 polegadas)
Diâmetro do orifício 1.5~6 mm Força dielétrica ≥200 vac @50Hz, entre cada circuito
Resistência ao isolamento 50 MΩ @ 500 VDC Ruído eletrônico minuto 30mΩ
Diâmetro externo 22mm ~ 54mm Grau de proteção IP64
Velocidade máxima 300rpm
Destacar

36 circuit slip ring

,

2A 240VAC/DC slip ring

,

gold contact slip ring
Descrição de produto
Capsule Slip Ring Rotary Joint 36 Circuits 2A IP64, 300RPM Wind Power Slip Ring
Product Specifications
Attribute Value
Type Electronic Accessories
Operating Speed 0-200 rpm
Number of Circuits 36
Voltage 240 VAC/DC
Current Rating 2 amps per circuit
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Lead Size 28# silver plated copper
Lead Lengths Standard 250 mm (9.843inch)
Hole Diameter 1.5~6mm
Dielectric Strength ≥200 VAC @50Hz, between each circuit
Insulation Resistance 50 MΩ @ 500 VDC
Electronic Noise 30mΩ Min
36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact 0 36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact 0
Key Features
  • Military standard surface processing
  • Precise construction
  • Gold-to-gold contact
  • Low resistance
  • Long service life
Customization Options
  • Rotating speed
  • Life span
  • Protection grade
  • Number of circuits
  • Current capacity
  • Size
  • Housing material
  • Mass production
Main Applications
  • High speed dome
  • Camera platform
  • Electrical testing equipment
  • Rotary table
  • Manufacturing and control equipment
Our Advantages
  • Large production facility of over 12,000 square meters with more than 500 employees
  • Recognized as "National High and New Technology" company with 69 patents
  • Long-term partnerships with global enterprises and worldwide agents
  • Over 10,000 successful designs for civil, military, commercial and industrial applications
  • Established in 1996 with more than 20 years of production and R&D experience
  • Free custom slip ring solutions tailored to various equipment requirements
  • Fast delivery service
36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact 2
Typical Application
36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact 3
Company Information
36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact 4 36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact 5 36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact 6 36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact 7
Frequently Asked Questions
What do we do?

We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.

What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. It can be used in any electromechanical system requiring rotation while transmitting power or signals, improving mechanical performance and simplifying system operation.

What kinds of slip rings do we offer?
  • Electrical Slip rings (capsule slip ring, through-hole slip ring, miniature slip ring, etc)
  • Signal Slip rings (USB2.0/USB3.0 slip ring, fiber optic rotary joint, high frequency slip ring, etc)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?

Proper selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance in selection or custom solutions.

Do you offer custom slip rings?

Yes, our engineers will develop perfect solutions for your needs. Contact us to discuss custom or modified solutions.
